Installing FIJI on OnDemand

FIJI (FIji Is Just ImageJ) is pre-installed on NEMO, but the shared version does not allow plugin installation. If you need to install plugins or customise FIJI for your analysis, follow these steps to install your own version.

More information about how to access OnDemand at the Crick can be found in the Crick HPC Wiki.

⚠️ NOTE – you’ll only need to run these instructions once. Afterwards, the software will be saved in your NEMO storage.

⚠️ Before You Start

Your home directory has very limited storage, so FIJI should not be installed there directly.

Instead, you should softlink your home working directory into your lab or STP shared space (which has much more storage).

If this hasn’t been done yet (or you’re unsure), please contact the HPC team via the #hpc Slack channel — they can help you set this up.

Step 1: Open an OnDemand Desktop and Launch a Terminal

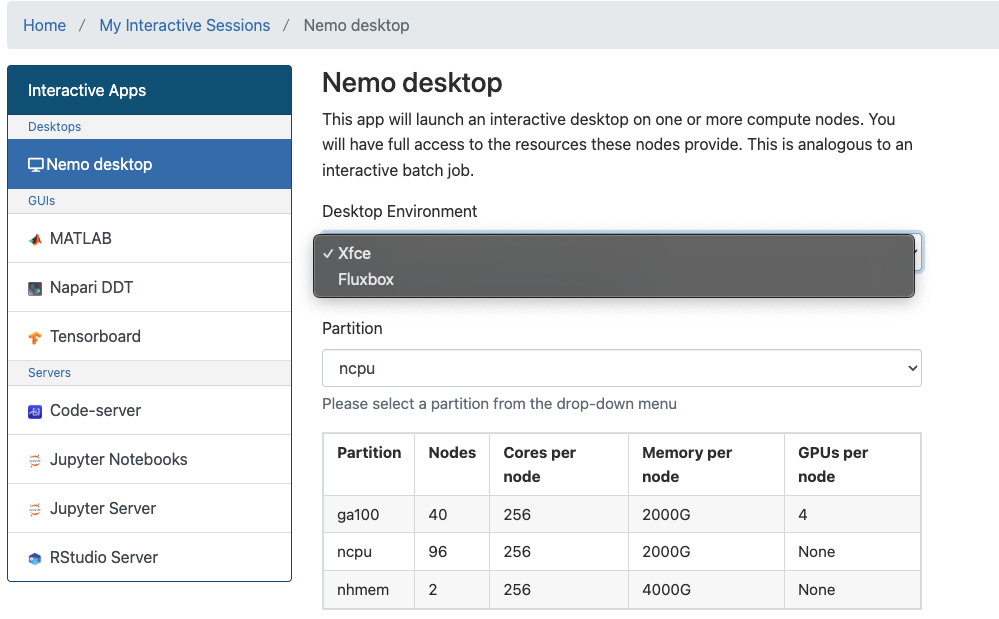

Start a new OnDemand Desktop session. Select Xfce as your Desktop Environment and ncpu partition. You can find detailed instructions here: Crick OnDemand Documentation

NEMO Desktop options

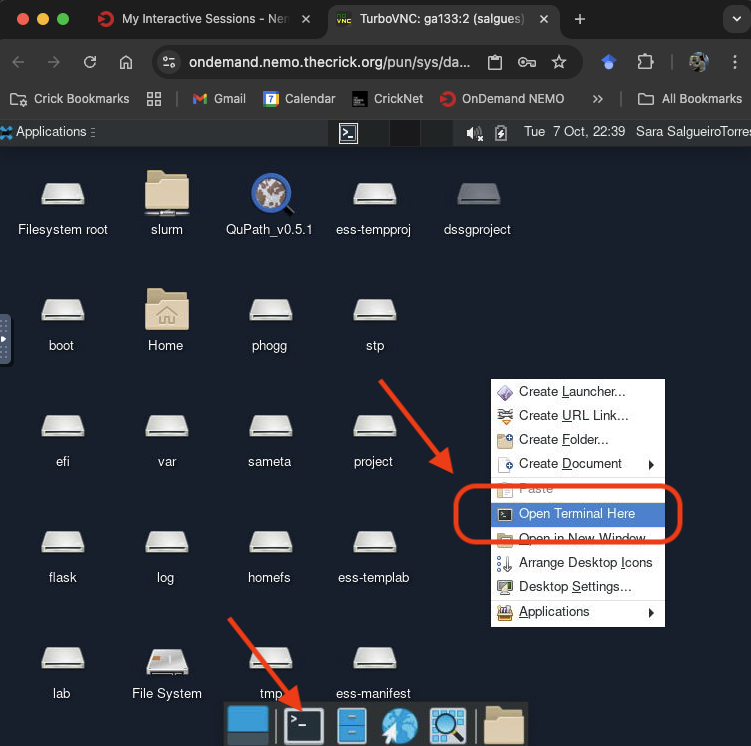

Once your desktop session starts, right-click anywhere on the desktop and select “Open Terminal Here”, or click the Terminal icon at the bottom of the desktop.

Open Terminal Screenshot

Step 2. Download the Installer

Go to the folder on NEMO where you want to install FIJI. Example:
```
cd /nemo/home/your-user-name/working/your-user-name/software/
```
Download the FIJI installation script by clicking the link below: 👉 install_FIJI_w_download.sh

Step 3. Run the Installer

In your OnDemand terminal:

Navigate to the folder where you downloaded the installer:

cd /nemo/home/your-user-name/working/your-user-name/software/

Run the installation script:
```
./install_FIJI_w_download.sh
```

This will:

Download the latest FIJI version
Unzip and set it up in the current directory
Create a launcher script called Run_Fiji.sh in your home directory

Step 4. Launch FIJI

After installation:

Open a new terminal
Run:
```
./Run_Fiji.sh
```

FIJI should now open and be ready to use 🎉

Useful Notes

To open FIJI later, simply start and OnDemand Desktop, open a terminal, and run:
```
 ./Run_Fiji.sh
```
You can install plugins, update FIJI, and customise settings. The changes will now be done on this copy of FIJI that lives in your NEMO storage.
If you encounter permission or storage issues, reach out to the HPC team via the #hpc Slack channel.
