File structure

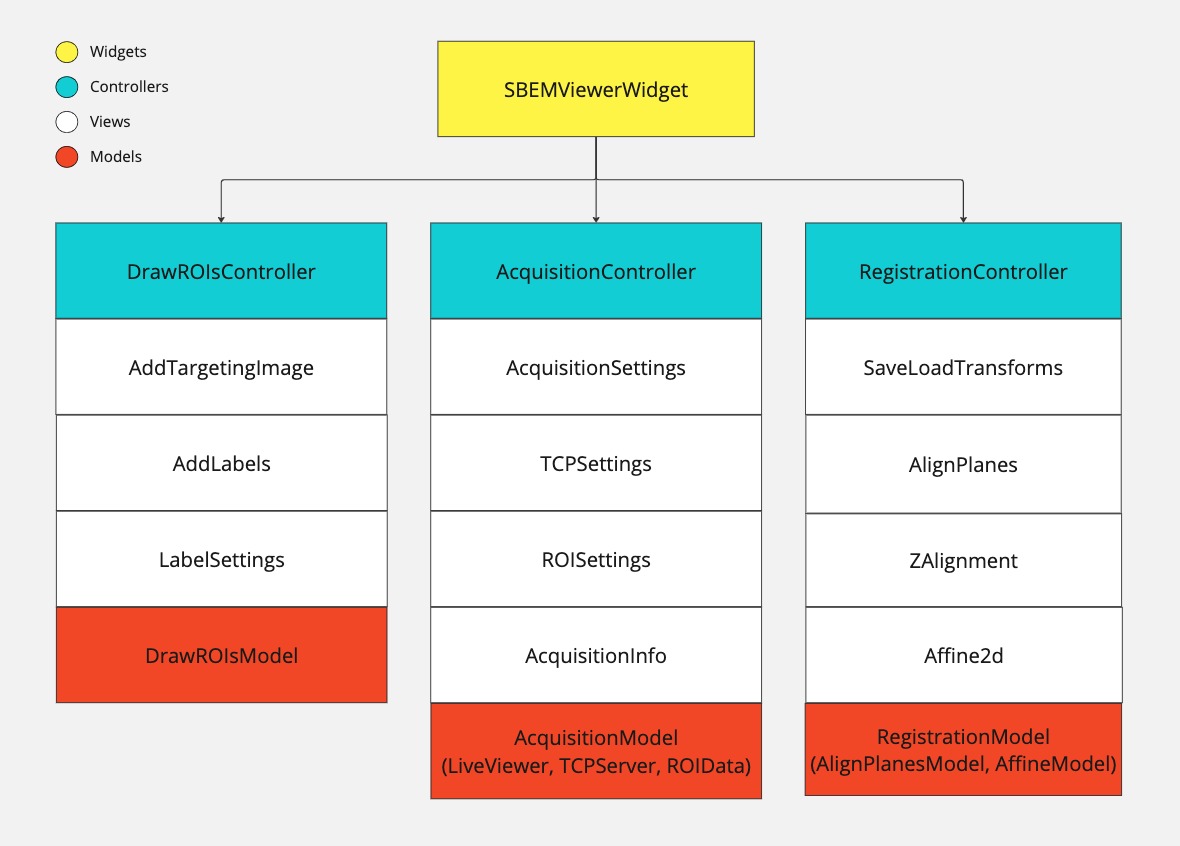

The napari plugin is created using a Model View Controller (MVC) design which is reflected in the file structure. The main widget is located in /_widgets/sbem_viewer.py and includes the main Qt widget for the plugin. This widget initializes the Targeting, Acquisition and Registration tabs, where each tab has a separate model, view and controller class (see diagram below). The views are located in the /_views directory, and include all the Qt widgets and layouts for the plugin. The models, found in /_models, handle the processing and interaction with the napari layers. The controllers in /_controllers connect Qt events from the views to trigger model funtions, and events from the models to update the UI.

└── napari_isbem
    ├── __init__.py
    ├── _controllers
    │   ├── __init__.py
    │   ├── acquisition_controller.py
    │   ├── registration_controller.py
    │   └── targeting_controller.py
    ├── _models
    │   ├── __init__.py
    │   ...
    ├── _tests
    │   ├── __init__.py
    │   ...
    ├── _utils
    │   ├── general_utils.py
    │   ├── image_utils.py
    │   └── registration_utils.py
    ├── _views
    │   ├── __init__.py
    │   ├── acquisition
    │   │   ├── __init__.py
    │   │   ...
    │   ├── registration
    │   │   ├── __init__.py
    │   │   ...
    │   ├── targeting
    │   │   ├── __init__.py
    │   │   ...
    │   ├── acquisition_view.py
    │   ├── registration_view.py
    │   └── targeting_view.py
    ├── _widgets
    │   ├── __init__.py
    │   └── isbem.py
    └── napari.yaml
